PRO NMEA 0183 Multiplexer
Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.

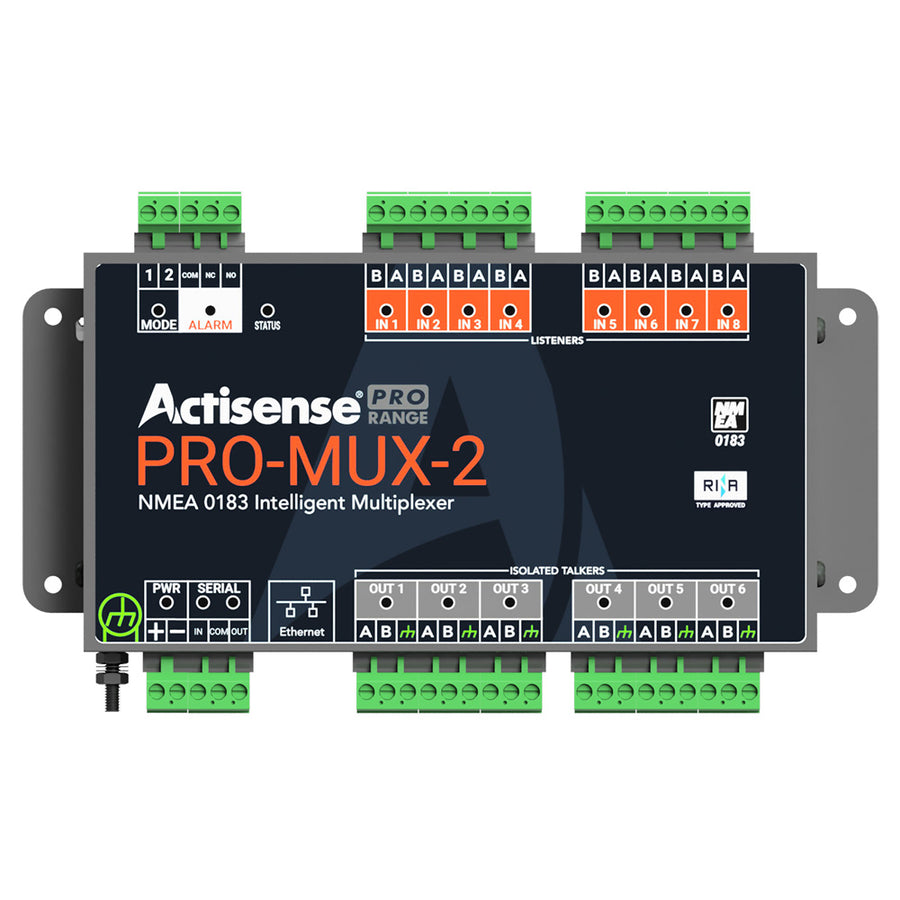

Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.
The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.
The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.
Features:
- 8 OPTO-isolated NMEA 0183 inputs
- 6 ISO-Drive NMEA 0183 outputs
- Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output)
- 0183 streaming via Ethernet
- Alarm output (N/O and N/C contacts)
- Designed for 12- and 24-Volt supply
- Isolation to battery supply
- Configurable input and output baud rates for rate conversion
- Data combining from any input to any output
- 2 independent Autoswitch virtual inputs with priority
- Advanced sentence-based filtering / routing
- Diagnostic LEDs on all inputs and outputs
- Alarm, mode and Bi-colour Status LED’s
- 2-part pluggable connector system supports both screw and screwless terminals
- DIN rail or Panel mountable
- Advanced statistics are available via a Web Browser
- Quick and easy to install
- Configuration using standard web browser, no PC operating system compatibility issues
- Advanced features solve NMEA 0183 data routing problems
- Fully isolated with ISO-Drive technology for peace of mind
- Easy firmware updates makes the device future-proof
Technical Specifications:
Power Supply
- Input Supply Voltage - 9 to 35 V DC
- Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
- Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection
- Power Indicator - LED, Blue – indicates unit is functioning correctly
- Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)
NMEA 0183 Port – Listener & Talker
- Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners
- Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers
- Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
- Speed / baud rate - 4800 to 38400 bps
- Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
- Talker Output Current Drive - 20 mA maximum per output
- Talker Output Protection - Short circuit and ESD
- Talker Data Indicator - LED, Orange (Flashes at data rate)
- Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
- Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
- Listener Data Indicator - LED, Green (Flashes to indicate valid input)
- Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Serial Port
- Compatibility - RS422 & RS232 compatible. RS485 Listener compatible
- Speed / baud rate - 4800 to 115200 bps
- Output Voltage Drive - >= 2.1V (differential) into 100 ohm
- Output Current Drive - 20 mA max.
- Output Protection - Short circuit and ESD
- Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
- Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
- Data Indicators - LED’s: Green = Receive, Orange = Transmit
- Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Ethernet Port
- Host Interface - 10/100BaseT, automatic polarity detection
- Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
- Indicators - Green = Link/Activity, Yellow = 100 Mbps
- Connector - RJ45
Isolation
- NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V
- NMEA 0183 Talker - Uses IsoDrive™, Hi-Pot tested to 1000V
- Serial Port - Uses IsoDrive™, Hi-Pot tested to 1000V
- Alarm Relay - Hi-Pot tested to 1000V
- Ethernet Port - 2kV for 60s
Mode Inputs
- Input Voltage Range - 0 to 35V DC
- Protection - Transient overvoltage and ESD protection
- Connectors - Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Alarm Output
- Contacts - Common, Normally Open and Normally Closed
- Alarm Indicator - LED, Red indicates a valid alarm condition
- Contact Ratings - 35VAC / 50VDC
- Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)
Mechanical
- Housing Material - 316 Stainless Steel
- Dimensions - 210mm (W) x 128mm (H) x 27mm (D)
- Weight - 540g
- Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)
Approvals and Certifications
- Compass Safe Distance - 175mm
- Type Approval Certificate - RINA
- Operating Temperature - -25 to +70°C
- Storage Temperature - -40 to +85°C
- Relative Humidity (RH) - 95% @ 55°C
- Environmental Protection - IP40
- Guarantee - 5 Years
Specifications:
- Data Interface: NMEA 0183
- Box Dimensions: 2"H x 6"W x 10"L WT: 1.5 lbs
- UPC: 5060998710584
