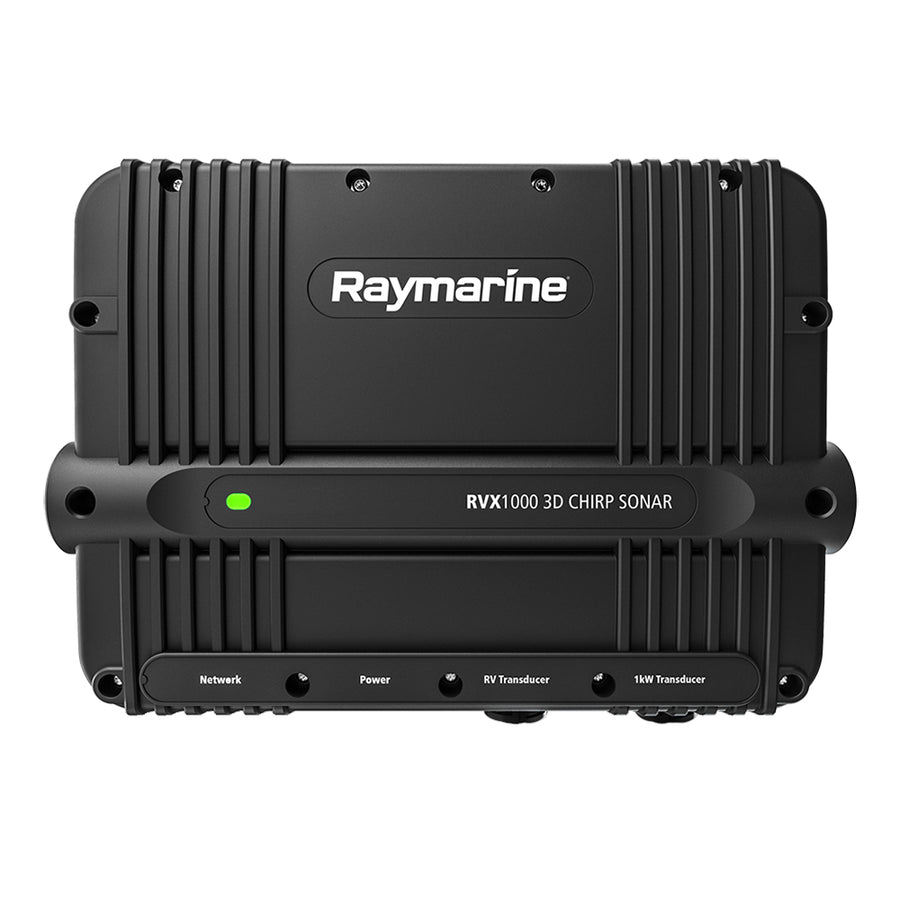

RVX1000 3D Sonar Module
The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.
Features:
- 5-channel sonar with RealVision 3D, CHIRP Down and SideVision, high-frequency CHIRP and high-power 1kW CHIRP Sonar
- RealVision 3D with GPS Track
- Sonar Scroll Back – Rewind, pause, and playback recorded sonar history
- Raymarine’s TrueZoom™ magnification technology
- RealVision 3D gyro stabilization compensates for boat movement, delivering life-like 3D imagery
- Dual transducer connections supporting both RealVision 3D and Airmar CHIRP 1kW transducers
- Fast quad core processor delivers stunning 3D sonar imagery alongside CHIRP, DownVision and SideVision sonar channels without any lag or delay
Specifications:
- Connections: 1x RVX Port = 25 pin RealVision connector | 1x 1kw Port = 11 pin 1kW connector | 1x Power connection | 1x Raynet connection
- Sonar: SonarRealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP
- Sonar Depth: High Frequency CHIRP = 900 feet | DownVision = 600 feet | SideVision = 300 feet Port and Starboard | 1kw = 5,000 feet
- Nominal Supply Voltage: 12 V and 24 V DC
- Operating Voltage: Range10.8 V to 31.2 V DC
- Power Consumption: 10.4 W (Maximum)
- Current: 2.4 A Peak; 1.2 A RMS
- Fuse/Breakers: 5amp
- Waterproof Rating: IPX6/IPX7
- Operating Temperature: -25 C (-13 F) to +55 C (+131 F)
- Storage Temperature: -30 C (-22 F) to +70 C (+158 F)
The RVX1000 is compatible with all LightHouse 3 enabled Multifunction Displays running software version 3.4 or higher.
In the Box:
- RVX1000 Sonar Module (1)
- Power Cable, 1.5M (1)
- Fixing Screws, #8 (4)
- Documentation Pack (1)
- RayNet Network Cable, 2M (1)
